Smart Multi-Channel Power Meters

MeterTrac gems3500



Features

Measure and monitor with multi-electric power modes
Up to 54 single phase or 26 3P3W or 18 3P4W feeders power monitoring
 Measurement; V(L-N, L-L), A, Hz, PF, Unbalance, Power(P,Q,S), Energy(P,Q,S), etc.
 0.5/1.0 Class accuracy according to IEC62053-21/22
Flexible application for 3phase4wire/ 3phase3wire power line
Sag/Swell, Over Current and Temp Alarm Functions
Total Harmonics distortion (THD)
1 Analog input terminal terminal for temperature measurement
Supports RS232/RS485 Serial (Modbus RTU) and Ethernet (Mobus TCP) Communication
Support Cloud energy platform

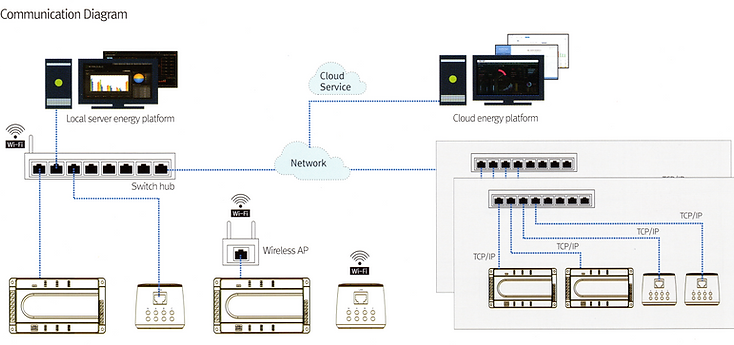

Communication




Typical Wiring



Installation Examples

Specifications




Ordering Codes

gems3500 - Channel - CT Type

Channel = 18, 27*, 36*, 45*, 54*

  * channels are special builds with a minimum 12-week delivery

CT Type =  AT;100mA CT (secondary output)

                   VT;333mV CT (secondary output)

                   RT;Rogowski coil

Ordering Code Examples

Accessories

CT List

CT Cable List

RS 232 Cable; Cable for PC and RS232 communication

gemsPDM430-A3; Panel display monitor with 4.3" TFT LCD
