gems

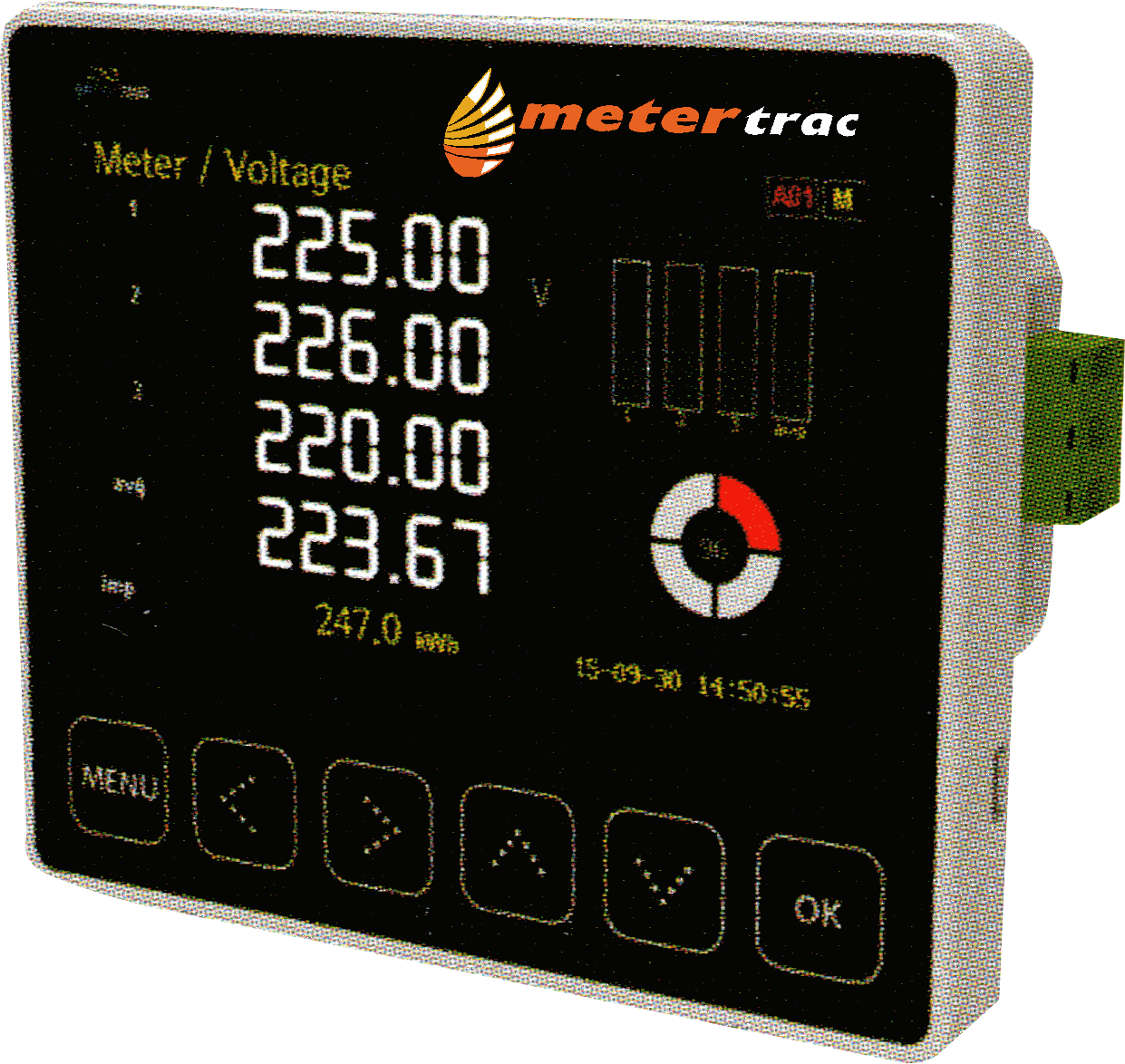

Smart Power Quality Meter

MeterTrac gems7000



Features

True real-time power quality analysis and precise measurement

Alarm; Over/Under/Limit

Metering: phase voltage, line voltage, current

frequency, power factor, Active/Reactive/Apparent

power, Active/Reactive/Apparent Energy, etc.

Additional option modules;

DI/DO/Ethernet/Temperature

31st harmonics, (THD)

Supports various CT types;

10mA/333mV/100mA/5A/Ragowski coil, etc.

1 NTC port for temperature measurement

Modular design - easy to add function

Clear display with 4.3" TFT LCD

Wave form display

Supports RS485 Serial and Ethernet Communication




Communication

Installation Examples



Specifications



Ordering Codes

gems7000 - CT Type - Module

CT Type =  5T; Built in CT

                   AT;100mA CT (secondary output)

                   VT;333mV CT (secondary output)

                   RT;Rogowski coil

Module  =  A; Ethernet Module

                   B; DIO Module

                   C; Temperature Module

Ordering Code Examples

Accessories

CT List

CT Cable List

Option Modules
